• Black air dam
• Front/rear chrome bumpers w/black rub strips, bright trim, rear step pad
• Black body-side molding w/bright trim
• Bright wheel opening moldings
• Light argent grille w/dark argent air intake areas
• Halogen sealed beam headlamps
• Daytime running lamps
• Dual black foldaway 8.5" x 5" manual mirrors
• Light tinted glass on all windows
• Intermittent windshield wipers
• Rear panel doors

• 3-passenger vinyl front bench seat w/headrests
• Black molded vinyl floor covering
• Simulated leather steering wheel
• Instrumentation-inc: speedometer, tachometer, odometer, trip odometer
• Headlamp-on warning tone
• Pwr door locks w/cargo area switch
• Passlock theft deterrent system
• Rear seat heat ducts
• ETR AM/FM stereo-inc: seek-scan, digital clock, (4) speakers
• (2) instrument panel cupholders
• Cigarette lighter on instrument panel
• (2) instrument panel mounted pwr outlets
• Door trim side reflectors
• Day/night rearview mirror
• RH/LH padded armrests
• Assist handles-inc: front passenger, outboard rear seat
• Color-keyed cloth headliner w/matching retainer moldings
• Dual padded color-keyed cloth sunshades w/LH elastic storage strap
• RH visor vanity mirror
• Lighting-inc: dome/reading/courtesy/ashtray/glove box/underhood lights, illuminated entry, backlit instrument panel switches
• Dual center seat/cargo area coat hooks

• 4-wheel anti-lock brakes
• Driver & front passenger air bags
• Lap/shoulder safety belts for outboard seat positions
• Lap safety belt for center seat positions
• Front/center outboard shoulder belt height adjusters
• Daytime running lamps
• Side door guard beams
• Single note electric horn

5.7L (350) SFI V8 (VORTEC) ENGINE

• (STD)

• Vehicle
• Rear Door Type: Panel Doors
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 17.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2950
• Gross Axle Wt Rating - Rear (lbs): 3968
• Curb Weight - Front (lbs): 2370
• Curb Weight - Rear (lbs): 2450
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 8,800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2950
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 32
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.57 x 1.25
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.15 x 2.75
• Tires
• Front Tire Order Code: QHA
• Rear Tire Order Code: QHA
• Spare Tire Order Code: QHA
• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: P235/75R15
• Front Tire Capacity (lbs): 1763
• Rear Tire Capacity (lbs): 1984
• Spare Tire Capacity (lbs): 1984
• Revolutions/Mile @ 45 mph - Front: 721
• Revolutions/Mile @ 45 mph - Rear: 721
• Revolutions/Mile @ 45 mph - Spare: 721
• Wheels
• Front Wheel Size (in): 15 x 7.0
• Rear Wheel Size (in): 15 x 7.0
• Spare Wheel Size (in): 15 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Speed-Sensitive Power
• Steering Ratio (:1), On Center: 16.5
• Steering Ratio (:1), At Lock: 15.6
• Turning Diameter - Curb to Curb (ft): 43.7
• Turning Diameter - Wall to Wall (ft): 48.1
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 42
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 131.5
• Length, Overall w/rear bumper (in): 219.5
• Width, Max w/o mirrors (in): 76.7
• Height, Overall (in): 71.3
• Overhang, Front (in): 35.4
• Overhang, Rear w/bumper (in): 52.6
• Ground to Top of Load Floor (in): 29.2
• Ground Clearance, Front (in): 7.1
• Ground Clearance, Rear (in): 6.6
• Rear Door Opening Height (in): 40.9
• Rear Door Opening Width (in): 50.5
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 97.7
• Cargo Area Width @ Beltline (in): 59.3
• Cargo Box Width @ Wheelhousings (in): 49.7
• Cargo Box (Area) Height (in): 40.8
• Cargo Volume to Seat 1 (ft³): 149.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.9
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.0
• Front Hip Room (in): 60.5
• Summary

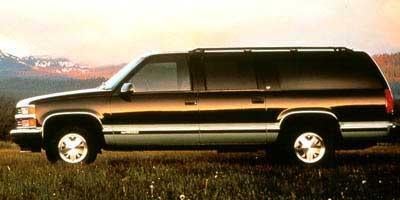

• Vehicle Name: GMC Suburban
• Body Style: 1500
• Body Code: ZW9
