• Luggage rails, rooftop, Sport, brushed aluminum
• Moldings, bodyside, body-color
• Headlamps, halogen, composite, includes automatic exterior lamp control
• Daytime running lamps
• Mirrors, outside rearview, power, heated, Black, folding
• Glass, Solar-Ray deep tinted, mid-, rear-side and liftgate
• Climate Package, includes (AJ1) Glass, Solar-Ray deep tinted, (C49) Defogger, rear window, (DR5) Mirrors, outside rearview, power, heated and (C25) Wiper, rear
• Wipers, intermittent, front
• Wiper, intermittent, rear, includes washer
• Door, power sliding, passenger-side, controlled by interior switch or key fob transmitter
• Door, power sliding, driver-side, controlled by interior switch or key fob transmitter
• Door handles, body-color

• Seats, 7-passenger, 2nd row captains chairs with armrests and (T8S) Utility tray, 2nd row, folding, 3rd row 50/50 split-folding bench (2nd row captains chairs are not removable and outboard armrests are deleted.)
• Seat adjuster, power, driver 6-way
• Storage, covered, non-locking, located below instrument panel
• Utility tray, front seat, side-folding
• Utility tray, 2nd row, side-folding
• Floormats, carpeted, front, 2nd row and 3rd row
• Steering column, Tilt-Wheel
• Steering wheel, mounted audio controls, includes (NK4) Steering wheel, leather-wrapped
• Instrumentation, deluxe, includes coolant temperature, trip odometer, tachometer and Driver Information Center
• Rear Parking Assist
• Windows, power, front, includes driver express-down
• Windows, power, rear quarter vent
• Door locks, power programmable, includes lockout protection and delayed locking
• Keyless entry, remote, programmable
• OnStar, one-year of Safe and Sound service. Includes Automatic Notification of Air Bag Deployment, Emergency Services, Stolen Vehicle Location Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Roadside Assistance, Accident Assist and Remote Horn and Lights. Also featuring Hands-Free Calling (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. Not available with a ship-to of Puerto Rico or the Virgin Islands.)
• Cruise control, electronic with set and resume speed
• Theft-deterrent, Pass-key III
• Air conditioning, front manual
• Air conditioning, auxiliary rear, includes heater, rear seat fan/temperature controls and (KG7) Alternator, 125 amp
• Defogger, rear-window, electric
• Sound system, ETR AM/FM stereo with CD player and MP3 playback, includes Radio Data System (RDS), seek-and-scan, digital clock, auto-tone control, automatic volume, TheftLock and premium front and rear coaxial speakers (Upgradeable to (US9) Sound system, ETR AM/FM stereo with 6-disc CD changer and MP3 playback or (U3U) Sound system with Navigation, ETR AM/FM stereo with CD player, Integrated Navigation Radio (INR).)
• Sound system feature, 8-speakers
• Antenna, fixed-mast
• Entertainment system, deluxe, rear seat, DVD player, overhead, integrated, includes remote control (batteries not included), A/V and headphone jacks, rear audio controls and 2 infrared headphones
• Cupholders, dual front
• Power outlet, auxiliary, front, 12-volt
• Console, overhead storage, removable, includes sunglasses and cell phone holder
• Overhead Rail System Modular
• Visors, illuminated vanity mirrors, driver and front passenger
• Lighting, overhead, 2nd row
• Cargo net, rear (Deleted when (PCN) Storage and Organizer Package is ordered.)

• Brakes, 4-wheel antilock disc
• Air bags, dual-stage, frontal, driver and right front passenger and side impact, 1st and 2nd row outboard (Not available with (Y3G) Mobility Prep Package, family use, (Y3H) Mobility Prep Package, paratransit or (AQW) Regular production accessory, Seat, power, Sit-N-Lift. Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
• LATCH system, (Lower Anchors and Top tethers for CHildren), for child safety seats
• Door locks, child security, rear
• Traction control, all-speed (If (R8E) StabiliTrak, not desired is selected and (NW9) Traction control is also desired, (NW9) may be ordered separately.)
• StabiliTrak, stability control (If Fleet or Federal Government order type, must specify (JL4) StabiliTrak or (R8E) Option (JL4) StabiliTrak, not desired.)
• Bumpers, front and rear, 5 mph
• Daytime running lamps

ENGINE, 3.5L 3500 V6 SFI

• (FWD-201 HP [150.0 kW] @ 5600 rpm
• 216 lb.-ft. [291.6 N-m] @ 4000) (AWD-196 HP [146.1 kW] @ 5600 rpm 213 lb.-ft. [287.5 N-m] @ 3200 rpm) (STD)

• Vehicle
• EPA Classification: 2WD Minivan
• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 12.15
• Weight Information
• Base Curb Weight (lbs): 4470
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: Soft Ride
• Suspension Type - Rear: Soft Ride
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.7 x 1.3
• Rear Brake Rotor Diam x Thickness (in): 11.8 x 0.47
• Tires
• Front Tire Order Code: QKY
• Rear Tire Order Code: QKY
• Front Tire Size: P225/60R17
• Rear Tire Size: P225/60R17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 17.6
• Lock to Lock Turns (Steering): 3.05
• Turning Diameter - Curb to Curb (ft): 41.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Exterior Dimensions
• Wheelbase (in): 121.1
• Length, Overall (in): 204.3
• Width, Max w/o mirrors (in): 72.0
• Height, Overall (in): 72.0
• Track Width, Front (in): 62.4
• Track Width, Rear (in): 62.6
• Min Ground Clearance (in): 5.5
• Rear Door Opening Height (in): 40.7
• Rear Door Opening Width (in): 51.6
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 136.5
• Cargo Volume to Seat 2 (ft³): 74.1
• Cargo Volume to Seat 3 (ft³): 26.9
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 39.8
• Front Leg Room (in): 39.9
• Front Shoulder Room (in): 59.9
• Front Hip Room (in): 55.8
• Second Head Room (in): 38.9
• Second Leg Room (in): 38.9
• Second Shoulder Room (in): 61.2
• Second Hip Room (in): 61.6
• Third Head Room (in): 38.2
• Third Leg Room (in): 36.2
• Third Shoulder Room (in): 48.6
• Third Hip Room (in): 48.3
• Summary

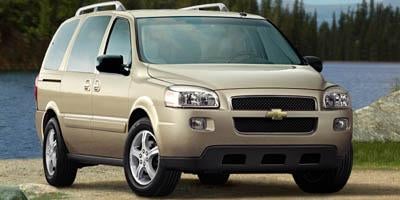

• Vehicle Name: Chevrolet Uplander
• Body Style: 4 Door
